Loader Performance

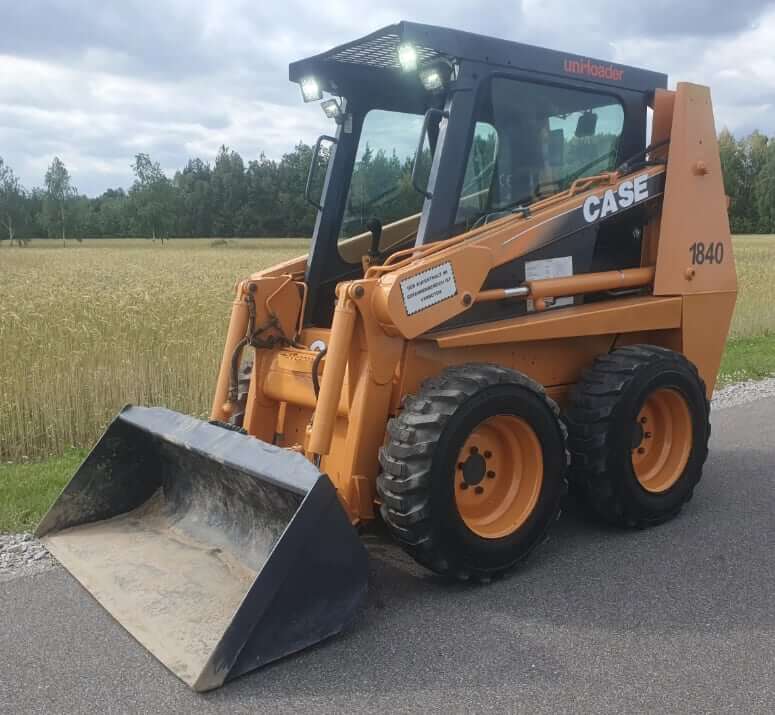

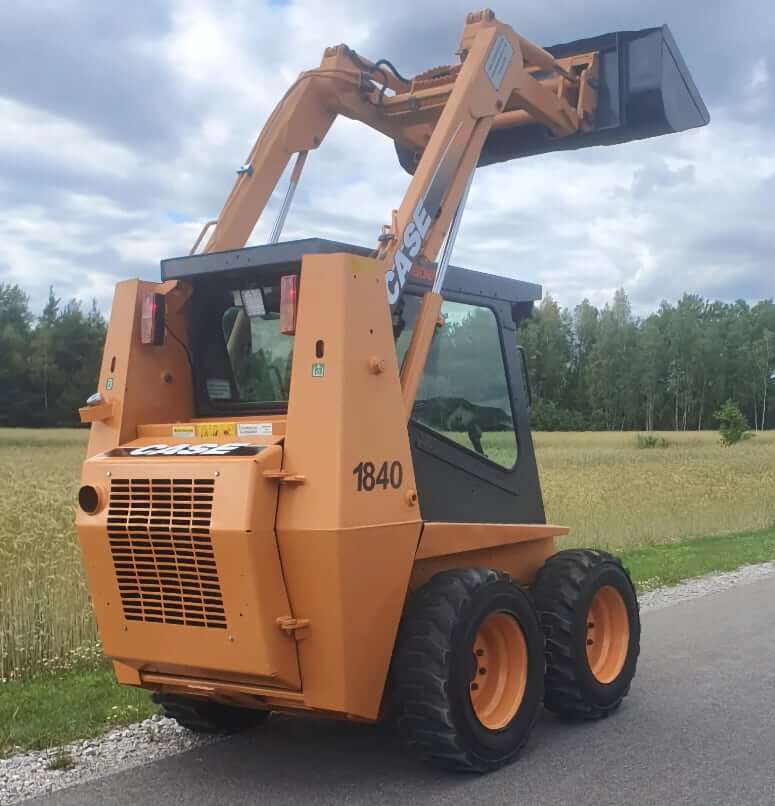

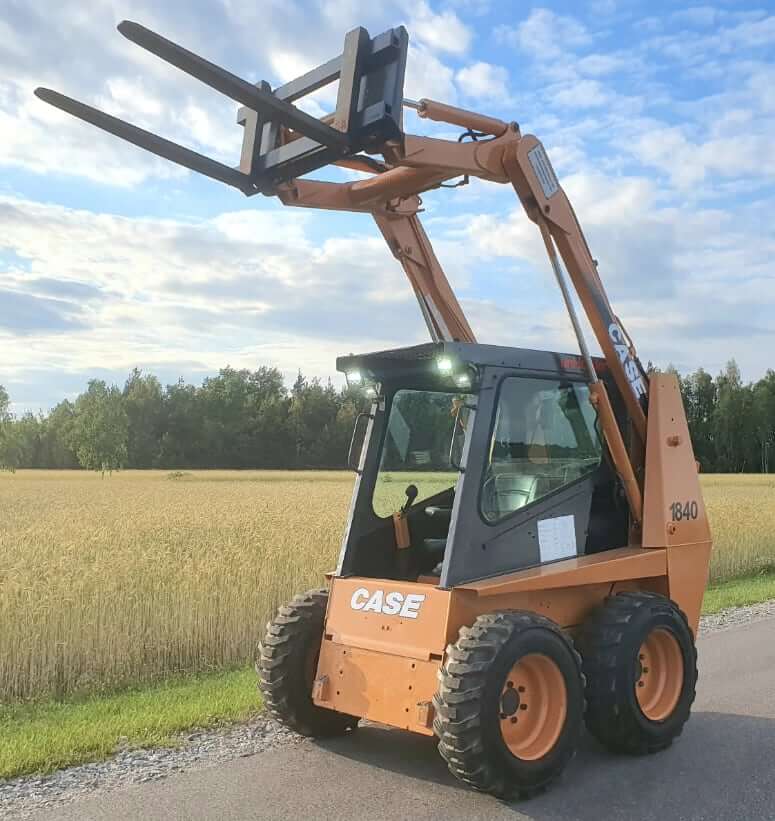

| Tipping Load | 2800 lb (1270 kg) |
| Rated Operating Capacity (54 in Dirt Bucket) | 1400 lb (635 kg) |
| Rated Operating Capacity (Pallet Fork) | 870 Ib (394 kg) |
| Lift Capacity to Max Height | 2630 Ib (1193 kg) |
| Breakout Force (Lift) | 2773 lbf (12.34 kN) |
| Breakout Force (Tilt) | 3066 lbf (13.64 kN) |

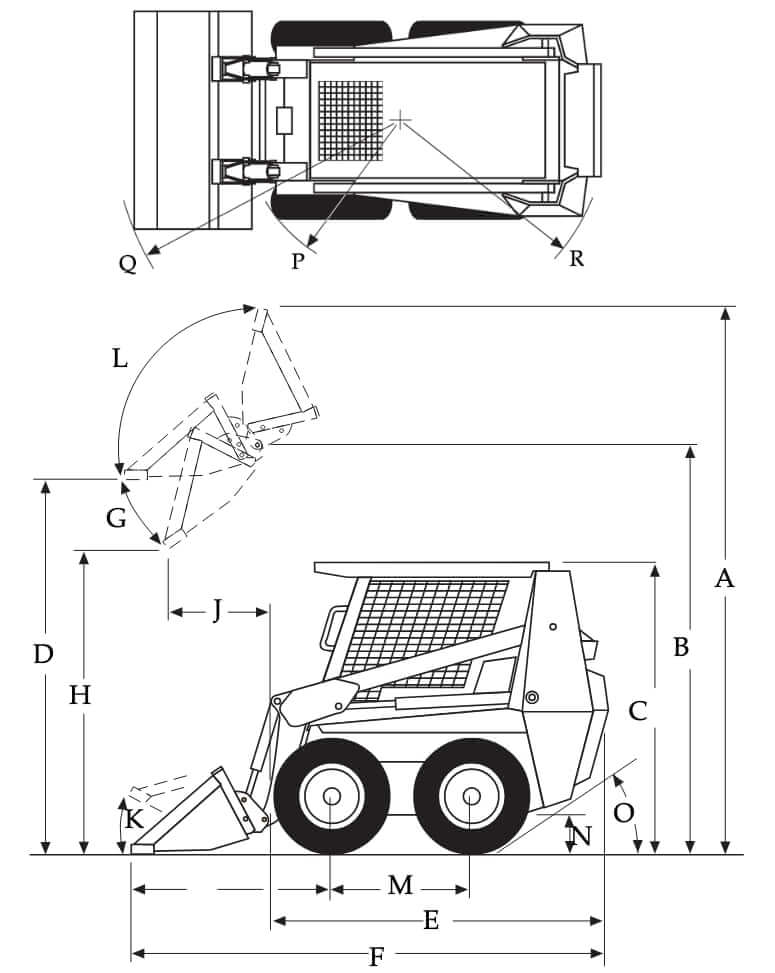

Dimensions
| A. Overall Operating Height (Dirt Bucket) | 145.5 in (3690 mm) |
| B. Bucket Hinge Pin Height | 110.5 in (2810 mm) |
| C. Height to Top of ROPS | 77 in (1960 mm) |
| D. Height to Bottom of Level Bucket, Loader Arm Fully Raised | 105 in (2670 mm) |
| E. Overall Length w/o Attachment | 96.5 in (2450 mm) |
| F. Overall Length w/ Bucket on Ground | 125 in (3180 mm) |
| G. Dump Angle at Maximum Height (Dirt Bucket) | 42.5° |
| H. Dump Height at Loader Arm Fully Raised (Dirt Bucket) | 84 in (2130 mm) |
| J. Reach at Loader Arm Fully Raised (Dirt Bucket) | 22 in (560 mm) |
| K. Maximum Attachment Rollback, Bucket on Ground | 29° |
| L. Maximum Attachment Rollback, Bucket at Full Height | 100° |
| M. Wheelbase | 37 in (940 mm) |
| N. Ground Clearance | 6.5 in (170 mm) |
| O. Angle of Departure | 26.5° |
| P. Clearance Circle Front, Less Bucket | 44 in (1120 mm) |
| Q. Clearance Circle Front, with 54 in Dirt Bucket | 73 in (1850 mm) |
| Q. Clearance Circle Front, with 63 in Dirt Bucket | 74.8 in (1900 mm) |
| R. Clearance Circle Rear | 59 in (1500 mm) |
Tires
| Type | Tire Size | Width Over Tires |
|---|---|---|
| Pneumatic (tubeless), Goodyear | 10.00 x 16.5, 6PR Traction | 59.9 in (1520 mm) |
| Pneumatic (tubeless), Galaxy | 10.00 x 16.5, 8PR | 59.9 in (1520 mm) |
| Pneumatic (tubeless), Galaxy | 13.00 x 16.5, 10PR | 65.0 in (1650 mm) |
| Non-Pneumatic, Mitco | 6.50 x 16 Industrial Lug, Solid | 53.2 in (1350 mm) |
| Non-Pneumatic, Airboss | 7.50 x 15 Industrial Lug | 57.6 in (1460 mm) |
| Non-Pneumatic, Airboss Altrakka II | 10.00 x 16.5 | 59.9 in (1520 mm) |
Buckets
| Type | Struck Capacity (SAE) | Heaped Capacity (SAE) | Weight |
|---|---|---|---|
| Dirt Bucket, 54 in (1372 mm) | 7.9 ft3 (0.22 m3) | 10.1 ft3 (0.28 m3) | 343 lb (155 kg) |
| Dirt Bucket, 63 in (1600 mm) | 9.1 ft3 (0.26 m3) | 11.8 ft3 (0.34 m3) | 374 lb (170 kg) |
| Utility Bucket, 54 in (1372 mm) | 13.7 ft3 (0.39 m3) | 17.0 ft3 (0.48 m3) | 428 Ib (194 kg) |
| Utility Bucket, 63 in (1600 mm) | 15.9 ft3 (0.45 m3) | 19.8 ft3 (0.56 m3) | 462 lb (209 kg) |
| Utility Bucket, 73 in (1854 mm) | 18.5 ft3 (0.52 m3) | 23.1 ft3 (0.65 m3) | 496 Ib (225 kg) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Case / Cummins |
| Engine Model | Case 4-390 (Cummins B3.9) |
| Displacement | 239 cu in (3.92 L) |
| Bore | 4.00 in (102 mm) |
| Stroke | 4.72 in (120 mm) |
| Gross Horsepower | 54 hp (40 kw) |
| Net Horsepower | 51 hp (38 kw) |
| Power Measured @ | 2000 rpm |
| Peak Torque | 159 lb ft (216 Nm) |
| Torque Measured @ | 1200 rpm |
| Fuel System | Direct injection |
| Lubrication System | Integral oil pump and oil cooler with piston oil cooling nozzles |
| Air Cleaner | Dry type, Replaceable paper element air cleaner with restriction indicator |
| Aspiration | Naturally Aspirated |
Operational Specs

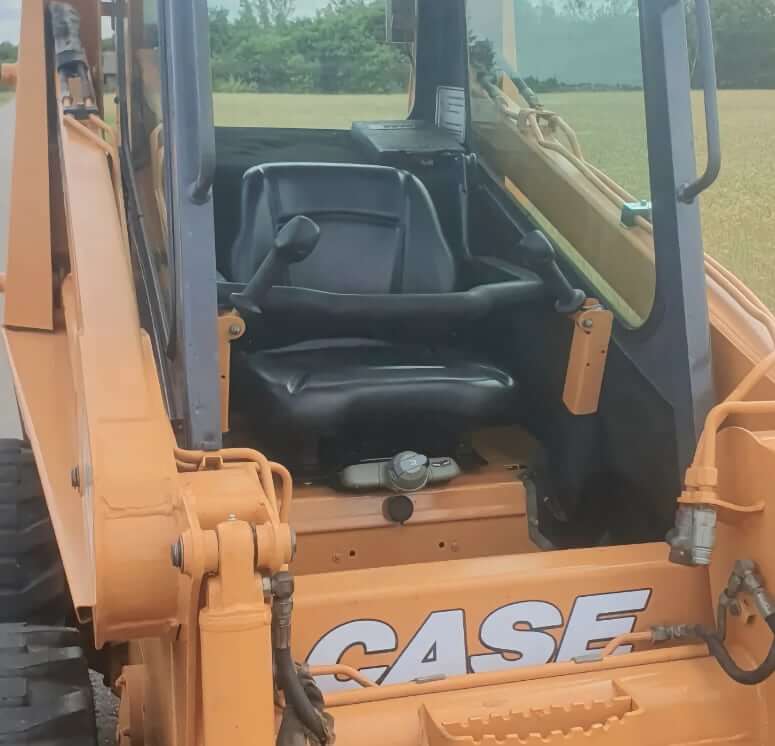

| Operating Weight | 5558 lb (2521 kg) |
| Counterweight (Standard) | 100 lb (45 kg) |
| Rated Operating Capacity | 1400 lb (635 kg) |
| Lift Capacity to Maximum Height | 2630 Ib (1193 kg) |
| Operating Voltage | 12 V |
| Alternator | 65 amps |
| Battery | 12 V, CCA 685 (CCA 700) |
| Cab / Canopy | ROPS / FOPS canopy with side screens |
| Operator Seat | Adjusted seat w/ 2-inch seat belt |
| Operator Seat (Optional) | Deluxe suspension seat |
| Noise Level (inside) | 89 dB(A) |
Powertrain
| Type | Hydrostatic transmission |
| Max Travel Speed | 6.2 mph (10.0 km/h) |
| Drive Motors | Fixed displacement high torque / low speed gerotor motors |
| Final Drive | Single stage reduction chain drive to all wheels |
| Flow | Bi-directional |
| Controls | Low-effort, servo assist |
| Drive Chain Size | No. 80 HT |
| Service Brakes | Dynamic braking – Moving the hand controls to the neutral position brings the unit to an even stop |
| Parking Brake | Mechanical parking latch spring applied, cable release |
Hydraulic System
| Hydraulic Circuits | 2 circuits: oil for the hydraulic system is kept separate from oil for the chains and sprockets |
| Pump Flow Capacity | 15.3 gal/min (57.9 L/min) |
| High Flow Capacity (Optional) | 30 gal/min (114 L/min) |
| Relief Valve Pressure | 2300 psi (15900 kPa) |
| Main Pump Type | Gear pump driven directly off engine crankshaft |
| Drive Pump Type | Two variable displacement piston pumps |
| Auxiliary Hydraulics (Optional) | Located on the loader arms allowing for quick coupling of attachments |
| Hydraulic Oil Filtration | 6-micron spin-on replaceable element w/ warning light |
| Hydraulic Cylinders, Lift | Bore 2.5 in (64 mm); Stroke 26.75 in (679 mm); Rod 1.5 in (38 mm) |
| Hydraulic Cylinders, Tilt | Bore 2.5 in (64 mm); Stroke 15.85 in (403 mm); Rod 1.25 in (32 mm) |
Hydraulic Cycle Times
| Raise Time (with rated loads) | 4.7 sec |
| Lowering time (power down) | 2.6 sec |
| Dump Time | 2.3 sec |
| Rollback Time | 1.5 sec |

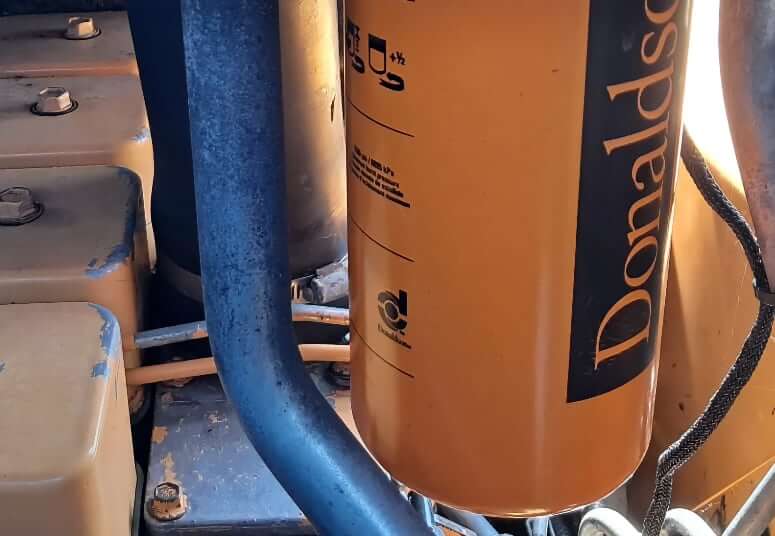

Service Refill Capacities
| Fuel Tank Capacity | 19.5 gal (73.8 L) |
| Engine Oil Capacity (w/ filter) | 2.7 gal (10.4 L) |
| Cooling System Capacity | 4.5 gal (17 L) |
| Hydraulic System Capacity (w/ tank) | 10.5 gal (39.8 L) |
| Hydraulic Tank Capacity | 5.75 gal (21.8 L) |
| Chain Box Capacity (each side) | 1.3 gal (4.7 L) |
