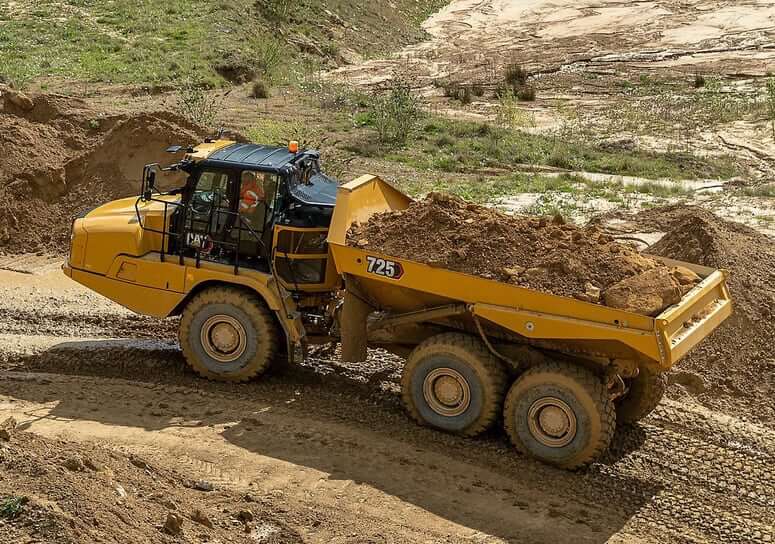

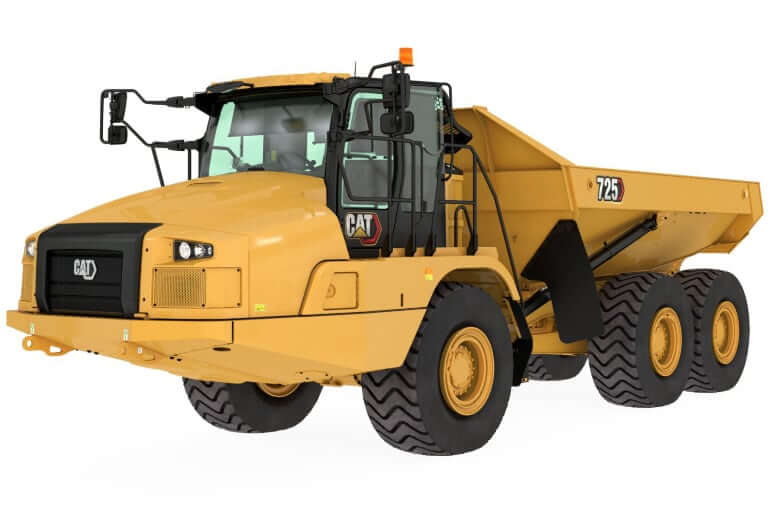

Dump
| Rated Payload | 52911 lb (24000 kg) |
| Capacity – Heaped | 19.6 yd3 (15 m3) |
| Capacity – Struck | 14.4 yd3 (11 m3) |
| Tailgate Heaped SAE 2:1 | 20.4 yd3 (15.6 m3) |
| Tailgate Struck | 14.5 yd3 (11.1 m3) |

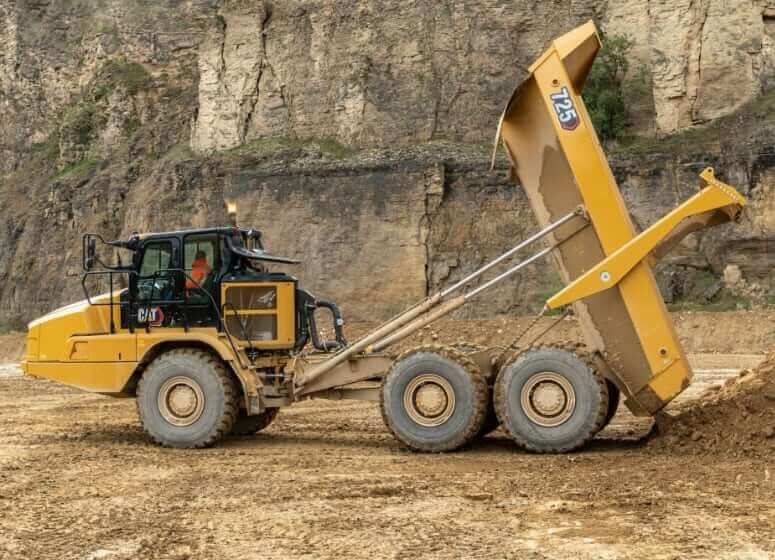

| Dump Angle | 70° |
| Raise Time | 10 seconds |
| Lower Time | 8 seconds |

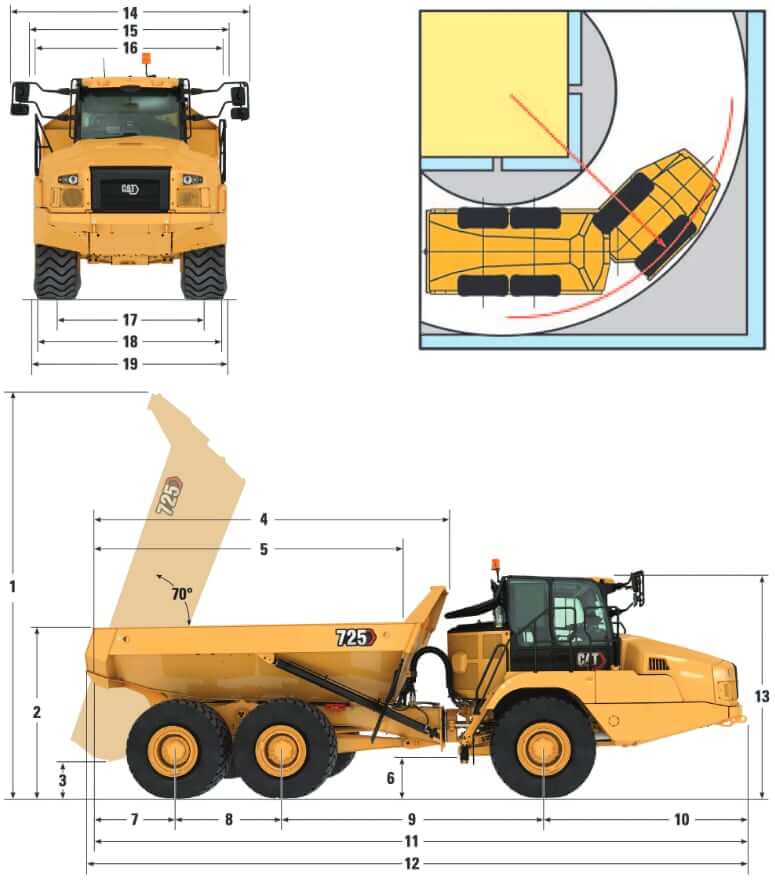

Dimensions
| 1. Body Height Fully Tipped | 21’3″ (6468 mm) |
| 2. Load over Height | 9’5″ (2916 mm) |
| 3. Ground Clearance – Body Fully Tipped | 1’10” (563 mm) |
| 4. Body Length | 19’0″ (5783 mm) |
| 5. Body Length Inside | 17’9″ (5411 mm) |
| 6. Ground Clearance | 1’9″ (545 mm) |
| 7. Rear Axle Center to Body Rear | 5’1″ (1556 mm) |
| 8. Mid Axle to Rear Axle Center | 5’7″ (1700 mm) |
| 9. Mid Axle to Front Axle (centers) | 13’1″ (3979 mm) |
| 10. Front Axle Center to Machine Front | 10’6″ (3210 mm) |
| 11. Overall Length | 34’3″ (10445 mm) |
| 12. Overall Length with Tailgate | 34’8″ (10593 mm) |
| 13. Height Transport Position | 11’6″ (3508 mm) |
| 14. Overall Width | 12’1″ (3676 mm) |
| 15. Width over Tailgate | 9’10” (2984 mm) |
| 16. Body Width | 9’6″ (2902 mm) |
| 17. Track Width | 7’6″ (2275 mm) |
| 18. Width over Tire | 9’5″ (2877 mm) |
| 19. Width over Fenders | 9’8″ (2950 mm) |
| Steering Lock to Lock | 4.75 sec at 60 rpm |
Operating Weight
| Weight | Empty | Rated Load | Loaded |
|---|---|---|---|
| Front Axle | 30974 lb (14050 kg) | 5511 lb (2500 kg) | 36484 lb (16549 kg) |
| Center Axle | 10242 lb (4646 kg) | 23699 lb (10750 kg) | 33944 lb (15397 kg) |
| Rear Axle | 9757 lb (4426 kg) | 23699 lb (10750 kg) | 33457 lb (15176 kg) |
| Total Weight | 50975 lb (23122 kg) | 52910 lb (24000 kg) | 103886 lb (47122 kg) |
Body Plate Thickness
| Front Plate | 0.28 in (7 mm) |
| Base Plate | 0.51 in (13 mm) |
| Side Plate | 0.43 in (11 mm) |
| Scow Plate | 0.51 in (13 mm) |

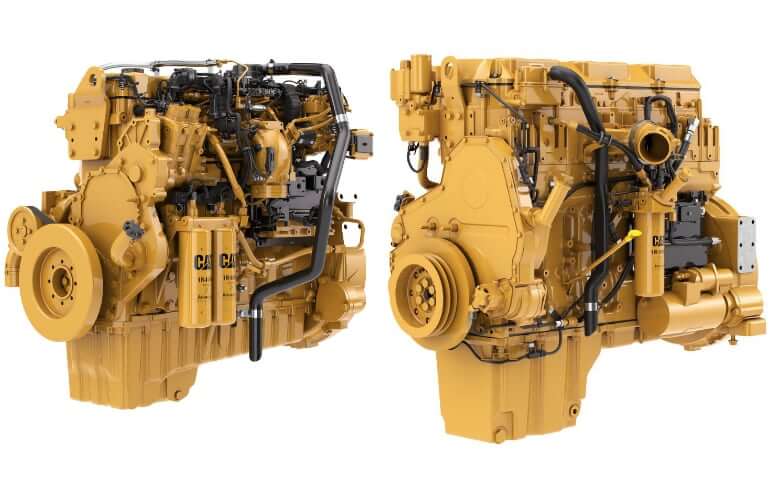

Engine Details
| Engine Model | Cat C9.3 | Cat C11 ACERT |
|---|---|---|
| Number of Cylinders | 6 | 6 |
| Gross Power | 342 hp (255 kw) | 309 hp (230 kw) |
| Net Power | 334 hp (249 kw) | 301 hp (225 kw) |
| Power Measured @ | 1700 rpm | 1800 rpm |
| Peak Torque | 1263 lb ft (1712.4 Nm) | 1463 lb ft (1983.6 Nm) |
| Torque Measured @ | 1200 rpm | 1200 rpm |
| Displacement | 567.5 cu in (9.3 L) | 677.4 cu in (11.1 L) |
| Bore | 4.5 in (115 mm) | 5.1 in (130 mm) |
| Stroke | 5.9 in (149 mm) | 5.5 in (140 mm) |
| Aspiration | Turbocharged Aftercooled (TA) | Turbocharged Aftercooled (TA) |
| Emission Standards | US EPA Tier 4 Final + EU Stage IV | US EPA Tier 3 + EU Stage IIIA |
Operational Specs
| Max Operating Weight | 103886 lb (47122 kg) |
| Payload Capacity | 52911 lb (24000 kg) |
| Operating Voltage | 24 V |
| Battery | 2x 12 V (maintenance free) |
| Tire Size | 23.5R25 (750/65 optional) |
| Lighting System | 2 head lamps, 2 width marker, 2 reversing, work light/cab access light, 2 stop/tail lights, front and rear direction indicators |
| Cold Weather Coolant | -60° F (-51° C) optional |

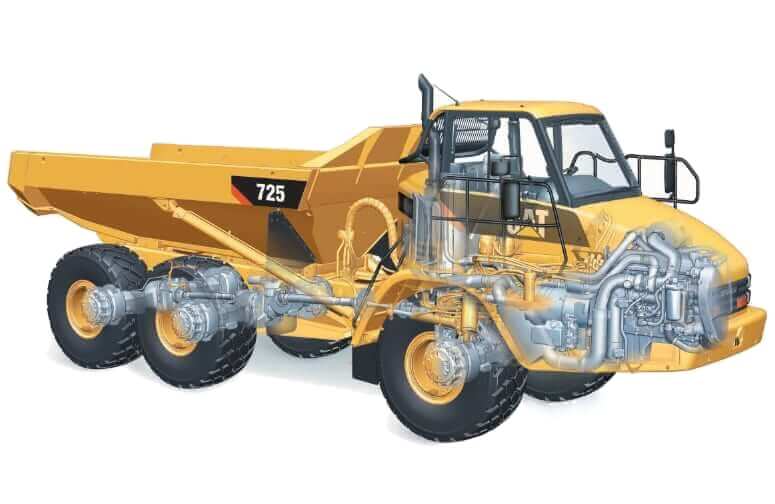

Transmission
| Transmission Type | Cat CX31 auto shift transmission |
| Number of Gears | 6F / 1 R |

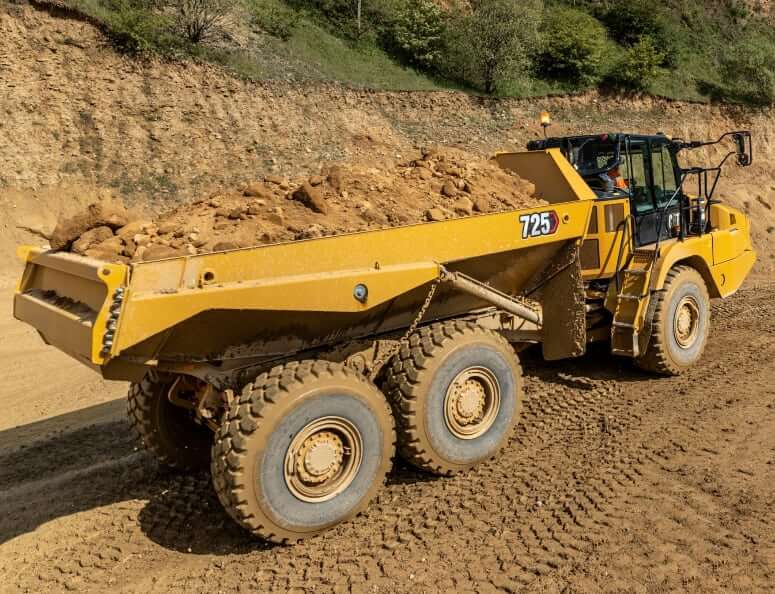

| Drive | 6×6 (three axle, six-wheel drive) |
| Forward 1 | 5.0 mph (8.1 km/h) |
| Forward 2 | 9.4 mph (15.2 km/h) |
| Forward 3 | 14.4 mph (23.2 km/h) |
| Forward 4 | 22.1 mph (35.5 km/h) |
| Forward 5 | 30.7 mph (49.4 km/h) |
| Forward 6 | 36.3 mph (58.4 km/h) |
| Reverse 1 | 5.5 mph (8.9 km/h) |

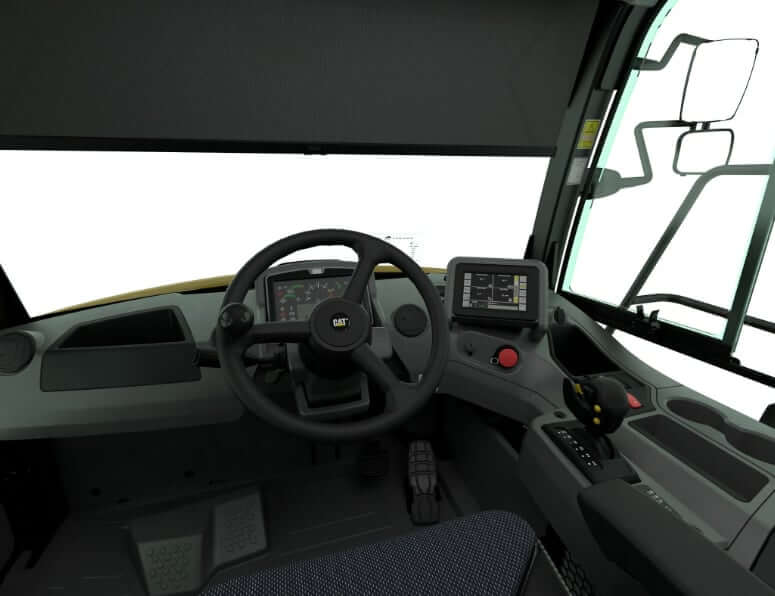

Operator Environment
| FOPS | ISO 3449 level ll – 2005 |
| ROPS | ISO 3471-1994 |
| Rear View Camera | Cat WAVS – Caterpillar Work Area Vision System |
| Operator Seat | Fully adjustable, air suspension seat, retractable lap belt |
| Sound Level in Cab | 69 dB(A) |
| HVAC | Air conditioning with R134a refrigerant + Heater and defroster with 4-speed fan |
| Brakes Standard | ISO 3450 – 1996 |
| Steering Standard | ISO 5010 – 2007 |
Service Refill Capacities
| Engine Model | Cat C9.3 | Cat C11 |
|---|---|---|
| Fuel Tank Capacity | 91 gal (412 L) | 94 gal (355 L) |
| Cooling System Capacity | 22 gal (83 L) | 18 gal (67 L) |
| Engine Oil Capacity | 8 gal (38 L) | 11 gal (41 L) |
| Transmission Oil Capacity | 10 gal (47 L) | 9.5 gal (36 L) |
| Hydraulic System Capacity | 24 gal (110 L) | 49 gal (151 L) |
| Differential + Final Drives | – | 43.3 gal (164 L) |
| Final Drives (each) | 1.6 gal (7.5 L) | – |
| Output Transfer Gear Box (OTG) | 5 gal (24 L) | 4.8 gal (18 L) |
| DEF Tank Capacity | 4 gal (20 L) | – |
