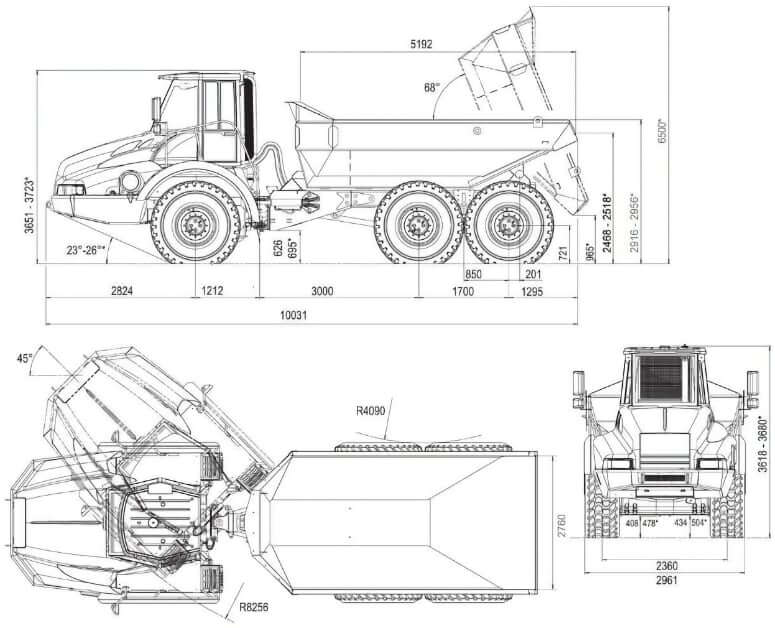

Dimensions
| Overall Length | 395 in (10031 mm) |
| Wheelbase | 165.8 mm (4212 mm) |
| Overall Width | 116.6 in (2961 mm) |
| Track Width | 92.9 in (2360 mm) |
| Overall Height (unloaded) | 146.6 in (3723 mm) |
| Overall Height (loaded) | 142.4 in (3618 mm) |
| Ground Clearance (loaded) | 16.1 in (408 mm) |
| Dump Ground Clearance | 38 in (965 mm) |
| Dump Height | 255.9 in (6500 mm) |
Weights
| Astra ADT 30C | Unloaded | Loaded |
|---|---|---|
| Front Axle | 27006 lb (12250 kg) | 35053 lb (15900 kg) |
| Rear Axles | 22751 lb (10320 kg) | 76787 lb (34830 kg) |
| Total Weight | 49757 lb (22570 kg) | 111840 lb (50730 kg) |
Payload Capacity
| Front Axle Capacity | 8047 lb (3650 kg) |
| Rear Axles Capacity | 54035 lb (24510 kg) |
| Total Payload Capacity | 62082 lb (28160 kg) |
Dump System
| Capacity – Struck | 17.9 yd3 (13.7 m3) |
| Capacity – Heaped | 23.0 yd3 (17.6 m3) |
| Tipping Angle | 60° |
| Raise Time | 13 sec |
| Lower Time | 13 sec |
| Body Material | Walls and bottom in high abrasion strength steel (360-440 HB) |
| Front Panel Thickness | 0.31 in (8 mm) |
| Side Wall Thickness | 0.47 in (12 mm) |
| Bottom Thickness | 0.59 in (15 mm) |
| Hoist | Hoist by 2 double-acting hydraulic cylinders, installed inside chassis members |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | FPT Industrial |
| Engine Model | Iveco Cursor 10 |
| Displacement | 628.6 cu in (10.3 L) |
| Bore | 4.92 in (125 mm) |
| Stroke | 5.51 in (140 mm) |
| Gross Power | 353 hp (260 kw) |
| Power Measured @ | 1900 rpm |
| Peak Torque | 1217 lb ft (1650 Nm) |
| Torque Measured @ | 1140 rpm |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 3 + EU Stage IIIA |
Operational Specs
| Max Operating Weight | 111840 lb (50730 kg) |
| Max Payload Capacity | 62082 lb (28160 kg) |
| Operating Voltage | 24 V |
| Alternator | 90 amps |
| Starter | 24 V, 6.7 hp (5 kw) |
| Battery | 2x 12 V, 170 Ah |
| Cab ROPS / FOPS | ROPS SAE J1040, ISO 3471 / FOPS SAE J231, ISO 3449 |
| Sound Level in Cab (ISO 6396), LpA | 71 dB(A) |
| Tire Size (Standard) | 23.5R25 |
| Articulation Angle | 45° |
| Turning Radius | 325 in (8256 mm) |
Transmission
| Type | Automatic ergopower ZF 6WG260 drive transmission |
| Number of Gears | 6F / 3R |
| Max Forward Speed | 28.9 mph (46.6 km/h) |
| Max Reverse Speed | 18.6 mph (30 km/h) |
| Torque Converter | Hydraulic torque converter, multiplication ratio(stall torque): 1:2,08 |
| Torque to Front Axle | 33.3% |
| Torque to Rear Axle | 66.7% |
| Differential | Front integrated self-locking differential |
| Service Brakes | Hydraulically activated dry disc brakes, powered by dedicated engine mounted gear pump and pressure accumulators |
| Auxiliary Brake | Automatic operation, electronically controlled integrated engine brake |
| Parking Brake | Spring applied, air released, drive line mounted |
Hydraulic System
| Type | Transmission mounted gear pump powers the steering and body tipping circuit |
| Pump Flow Capacity | 65.5 gal/min (248 L/min) |
| Max Working Pressure | 1740 psi (12000 kPa) |
| Centralised Pump | Gear type |
| Steering Pump | Ground driven radial piston emergency steering pump |

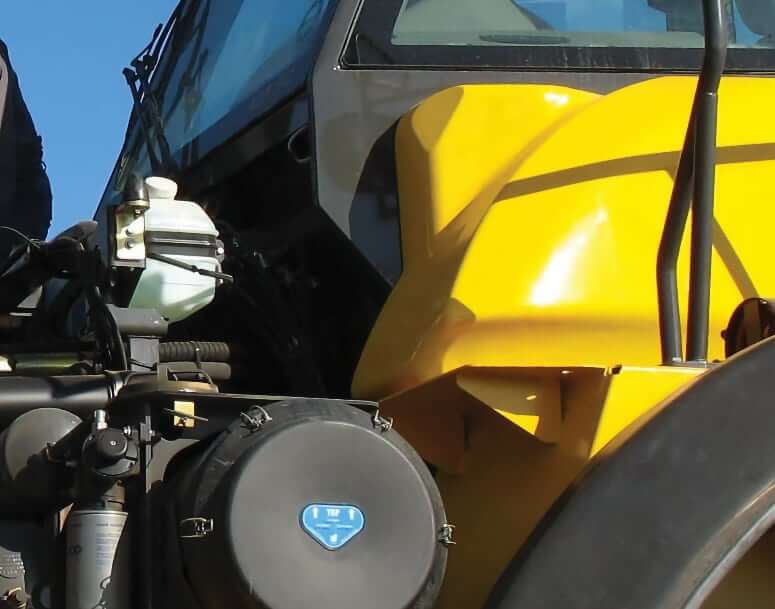

Service Refill Capacities
| Fuel Tank Capacity | 100.3 gal (380 L) |
| Engine Oil Capacity | 8 gal (30.5 L) |
| Cooling System Capacity | 9.77 gal (37 L) |
| Transmission Oil Capacity | 10.3 gal (41 L) |
| Front Differential Fluid Capacity | 3.7 gal (14 L) |
| Intermediate Axle Fluid Capacity | 9.25 gal (35 L) |
| Rear Axle Fluid Capacity | 8.71 gal (33 L) |
| Hub Oil Capacity (each) | 0.79 gal (3 L) |
| Hydraulic System Capacity | 55.48 gal (210 L) |
